Lead V3 -
It is the signal between the positive electrode on V3 and the negative electrode which is a combination of the left arm electrode, right arm electrode and the left leg electrode.

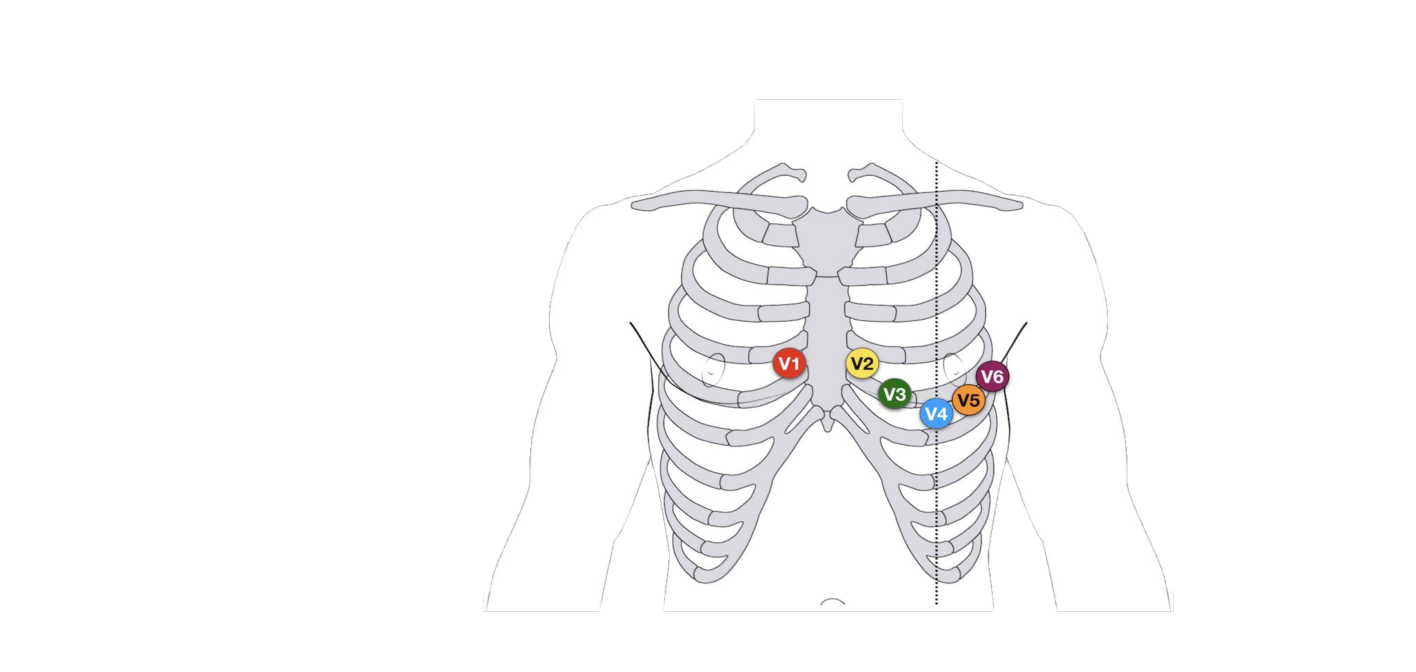

Chest Lead Placement
STEP 1 : Make all the Correct Connections.

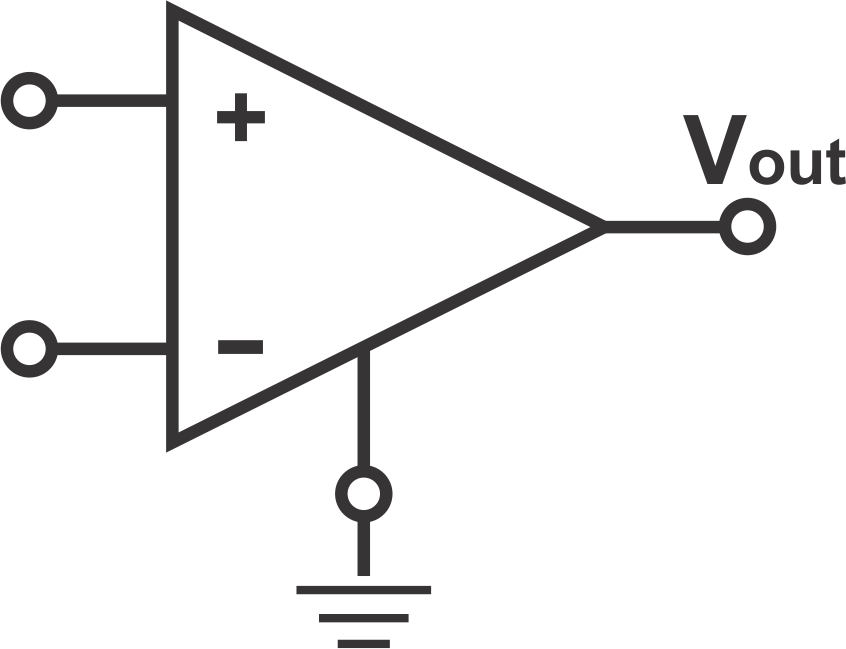

1. Connect V3 Electrode point of human to the positive point (V3) of op-amp circuit.
2. Connect (avg) point of right arm electrode, left arm electrode and left leg electrode of human to the negative point (avg) of op-amp circuit.
3. Connect Right Leg Electrode (RL) of human to the ground point (RL) of op-amp circuit.
STEP 2 : Click on check button to check for Correct Connections.
STEP 3 : If Connections are not correct click on reset button for reset connections.
STEP 4 : click on print button to save the observations.
